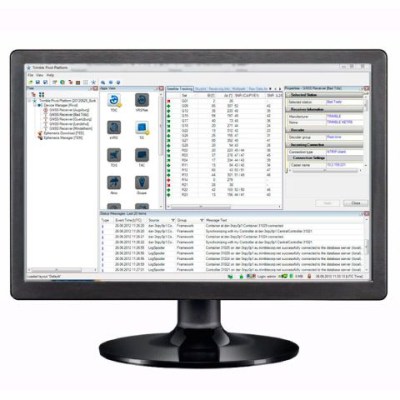

Trimble® Pivot® Platform software is GNSS CORS network software for managing GNSS reference stations and generating real-time corrections.

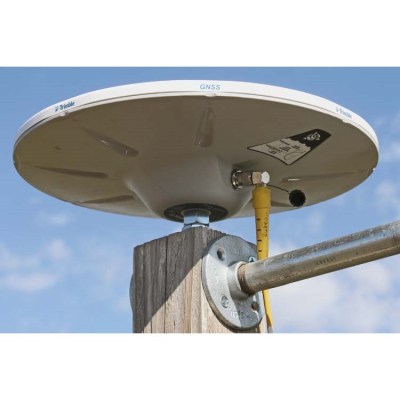

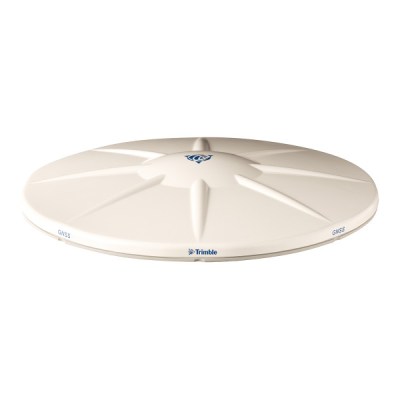

Trimble Zephyr 3 Geodetic antenna bringing the next generation of signal reception quality to the already proven GNSS Zephyr Geodetic 2 design. By improving upon the signal reception characteristics, the Zephyr 3 Geodetic antenna greatly improves performance in harsh signal environments.

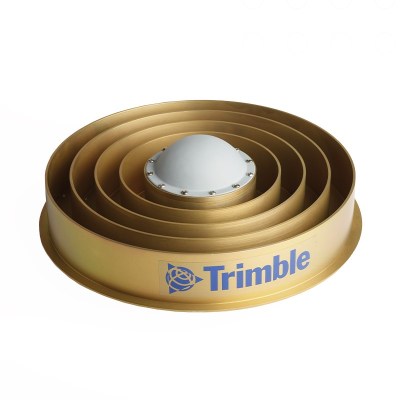

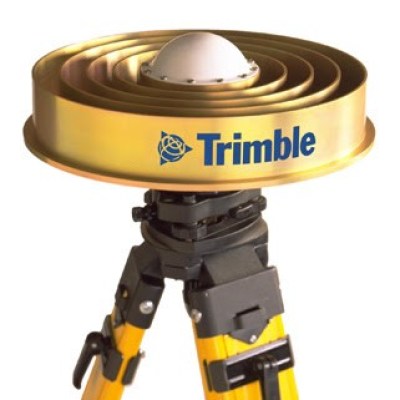

Trimble GNSS-Ti v2 Choke Ring antenna offers the benefits of the Jet Propulsion Labs (JPL)designed choke ring ground plane with proven
Trimble antenna element technology.

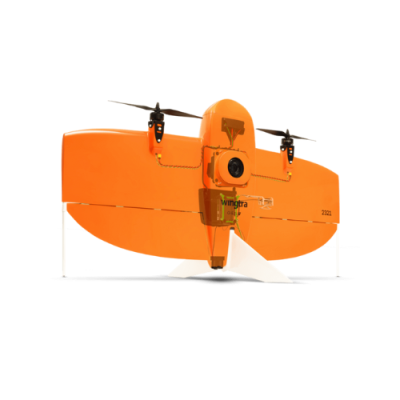

WingtraOne Gen II comes with a variety of features that make it versatile and efficient:
- Speed
- Increased Area Coverage
- Operational Versatility

Unequalled Performance In the Field
• Designed to perform optimally whatever the job
• Dust and waterproof rating of IP55
• Battery life of 3 days
• USB Storage device stores data

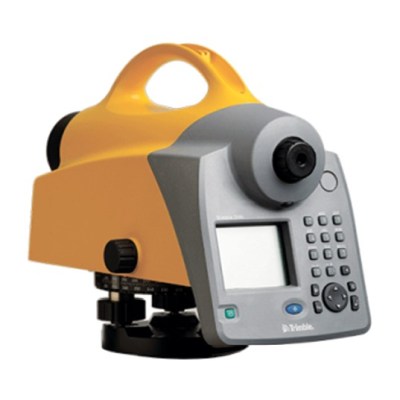

Easy To Learn, Easy to Use
• Reduces number of stations needed by 20%
• Makes leveling in low light conditions easier
• Ensures greater accuracy
Trimble Quality and Accuracy for Measuring with Confidence
• Supports the Trimble Integrated Surveying Portfolio
• Proven optics by Carl Zeiss ensure the highest precision and accuracy

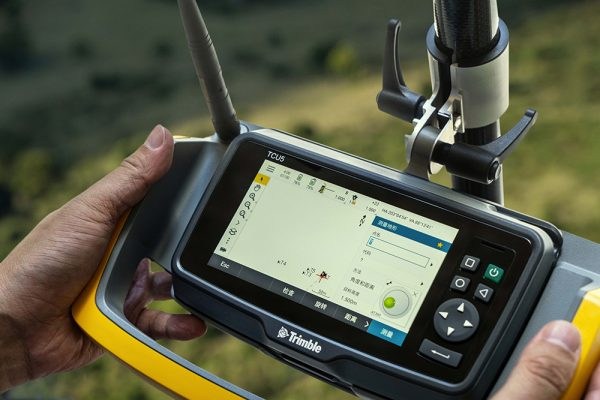

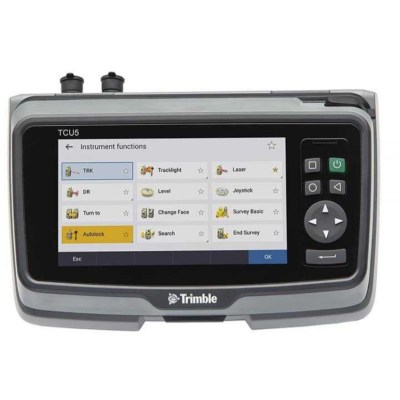

Trimble TCU5
Powered by the latest Trimble Access 2023 the TCU5 controller elevates your productivity, together with the new robotic holder and docking station for best performance.
Key Features
• Combines latest Trimble Access field software with Trimble Total Stations
• WiFi connectivity, including Trimble Sync Manager support
• Android operating system
• 5-inch multi-touch screen
• Portability for ease of data transfer in the office connecting via the docking station
• In-the-field flexibility to be an integrated on-board control unit or robotic data collector

Trimble TSC5
Trimble TSC5 features at a glance

• 5-inch touchscreen
5-inch multi-touch screen for finger, stylus or glove and bright, anti-glare display that helps you get more done in sunlight and low light conditions.

• Google Mobile Services
Google Mobile Services certified with access to Google Play™ store apps

• Backlit alphanumeric keypad
Backlit alphanumeric keypad for effortless data entry, even in tough conditions.

• Connectability for efficient data collection
Worldwide WWAN with hot spot capability, AT&T and Verizon certified.

• Android™ 10 operating system
Optimized for Trimble Access 2021 field software

• 12 programmable function keys and Shift & AGr key combinations
12 physical function keys, plus additional Shift & AGr key combinations provide even more options to speed up common workflows.

Geospatial.trimble.com/TSC5

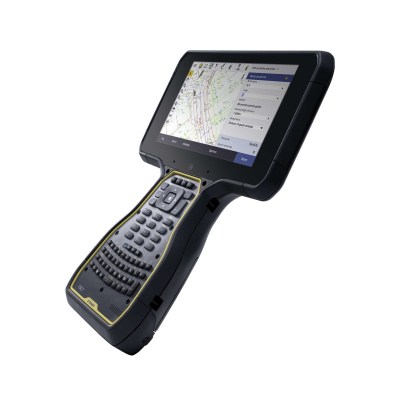

KEY FEATURES
• Optimized for Trimble® Access™field software
• Large 7-inch multi-touch screen forfinger or stylus
• Sunlight readable display
• Secure Windows® 10 Pro operating system
• Compatible with Microsoft® Office, webbrowsers, and other third-party apps
• Manages large project files, compleximagery, point clouds, and other 3D data
• Intel Pentium processor with 8 GB RAM and 64 GBinternal memory
• Comprehensive connectivity options
• Front- and rear-facing cameras
• Backlit keypad with customizable buttoncommands
• User-interchangeable EMPOWER modules,including a long-range radio
• Military-spec rugged design, engineeringand performance
• Ergonomic form factor
• Hot-swappable batteries with LED indicators

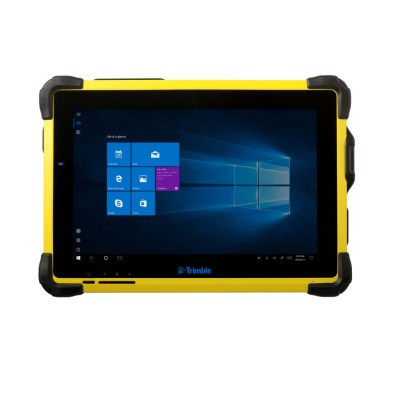

Key features
● Powerful Intel® 6th Generation Core™ i7 processor that handles large data sets such as point clouds, images, maps and other complex or processor-intensive data with ease.
● Large 10.1-inch display that reads in bright daylight and enables better data visualization and analysis.
● The latest Windows® 10 loT Enterprise operating system that supports commercially available field and office applications.
● Secure, NIST compliant BIOS and TPM 2.0 (Trusted Platform Module).
● IP-65 ruggedized platform that meets military-grade (MIL-STD-810G) specifications for shock, drop and vibration resistance.
● Integrated wireless connectivity options, including Wi-Fi, 4G LTE, and Cirronet for controlling Trimble S Series total stations and the Trimble SX10 scanning total station.
● Hot-swappable Li-Ion batteries for a full day’s work in the field.
● Built-in GNSS receiver with SBAS support provides real-time accuracy.
● Supports Trimble field and office software workflows, including Trimble Access™, Trimble TerraFlex™, and Trimble Business Center.

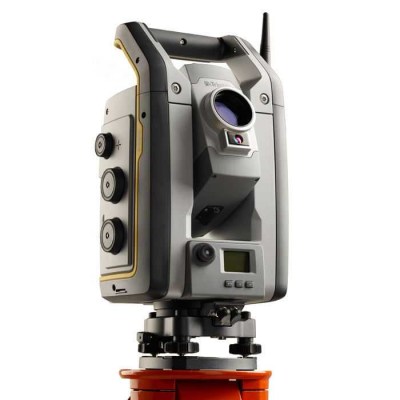

Now you only need one instrument on the job site to perform all your data capture. Create 3D models, high accuracy visual site documentation, point clouds, and more using the Trimble S7, Trimble Access™ field software and Trimble Business Center office software.
• Surveying, imaging and 3D scanning in one powerful solution
• Improved Trimble VISION technology for video robotic control, scene documentation and photogrametric measurements
• Trimble DR Plus for long range and superior accuracy
• Complete field-to-office solution for quick data capture and processing
• Seamless integrated surveying with Trimble GNSS receivers

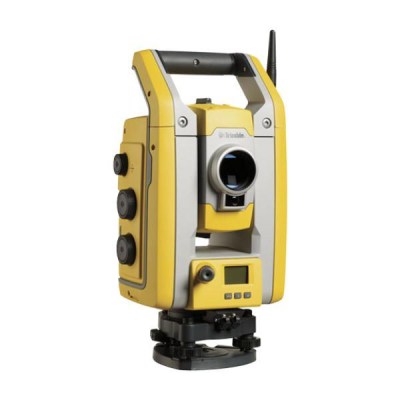

Count on the Trimble S5 total station to make your job easier, day after day, project after project. Built on proven Trimble technologies––including Trimble SurePoint and MagDrive™ technology, and our DR Plus EDM––this is the no nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy.

Features

- Available 0.5” or 1” angle accuracy
- Trimble DR Plus or DR HP EDM for optimal speed, accuracy and reliability
- Optional Trimble VISION and SureScan technology
- Locate2Protect real-time equipment monitoring and Trimble InSphere equipment management
- Complete field-to-office solution for quick data capture and processing
- Trimble 4D Control software for monitoring management

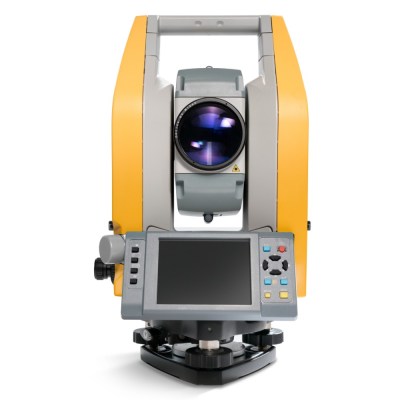

The new Trimble C5 mechanical total station completes the industry’s top portfolio with productivity-boosting, time-saving features that make fieldwork easier and faster. The Trimble C5 is tough and reliable with a user-friendly design. It limits user fatigue even as it stands up to the toughest worksite conditions. On a wide range of projects, in diverse settings across the globe, the C5 is hard at work, quickly capturing accurate measurements and virtually eliminating downtime.
The new Trimble C5 has color touch screens supporting Trimble Access™ on board. The C5 is available in 1”, 2”, 3”, and 5” accuracies.
Whatever the task, it’s equipped and ready to deliver the high level of efficiency and productivity—the improved workflows—you expect from Trimble.

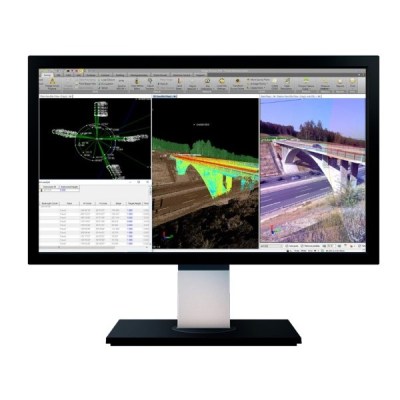

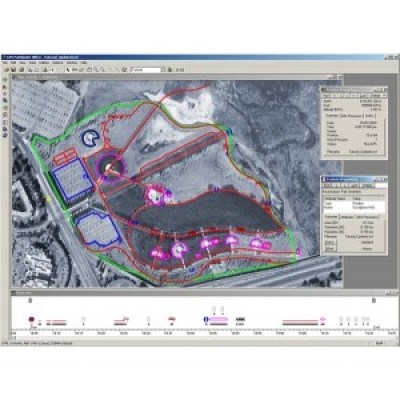

Trimble Business Center enables you to efficiently edit, process, adjust and create
deliverables with confidence. It is the Complete Software Solution - Comprehensive workflows for Survey, GIS, and specialist service providers creating deliverables from traditional data types or expanding to the latest point cloud and imagery data from terrestrial, mobile and aerial sensors. One software does it all: eliminating historically disjointed workflows, supporting the needs and flexibility of multi- disciplined businesses and reducing costs of software purchases and training.

Enables users to do the GNSS post-processing for the better accuracy and result. Users are able to import and export from and to GIS 3rd party software and AutoCAD and able to bring georeferenced raster image to be your background map with ease.

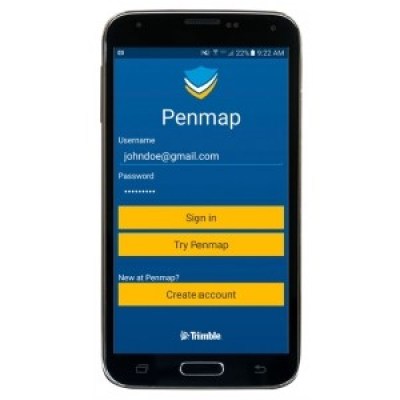

Hybrid Mobile App for Survey and GIS Data Collection
Penmap is a powerful, yet incredibly straightforward, cloud-connected application for cadastral field surveying and high-accuracy GIS data collection. Whether working on the Windows® or Android™ platform, Penmap is designed to provide both professional surveyors and field workers with a reliable and complete data collection application.
